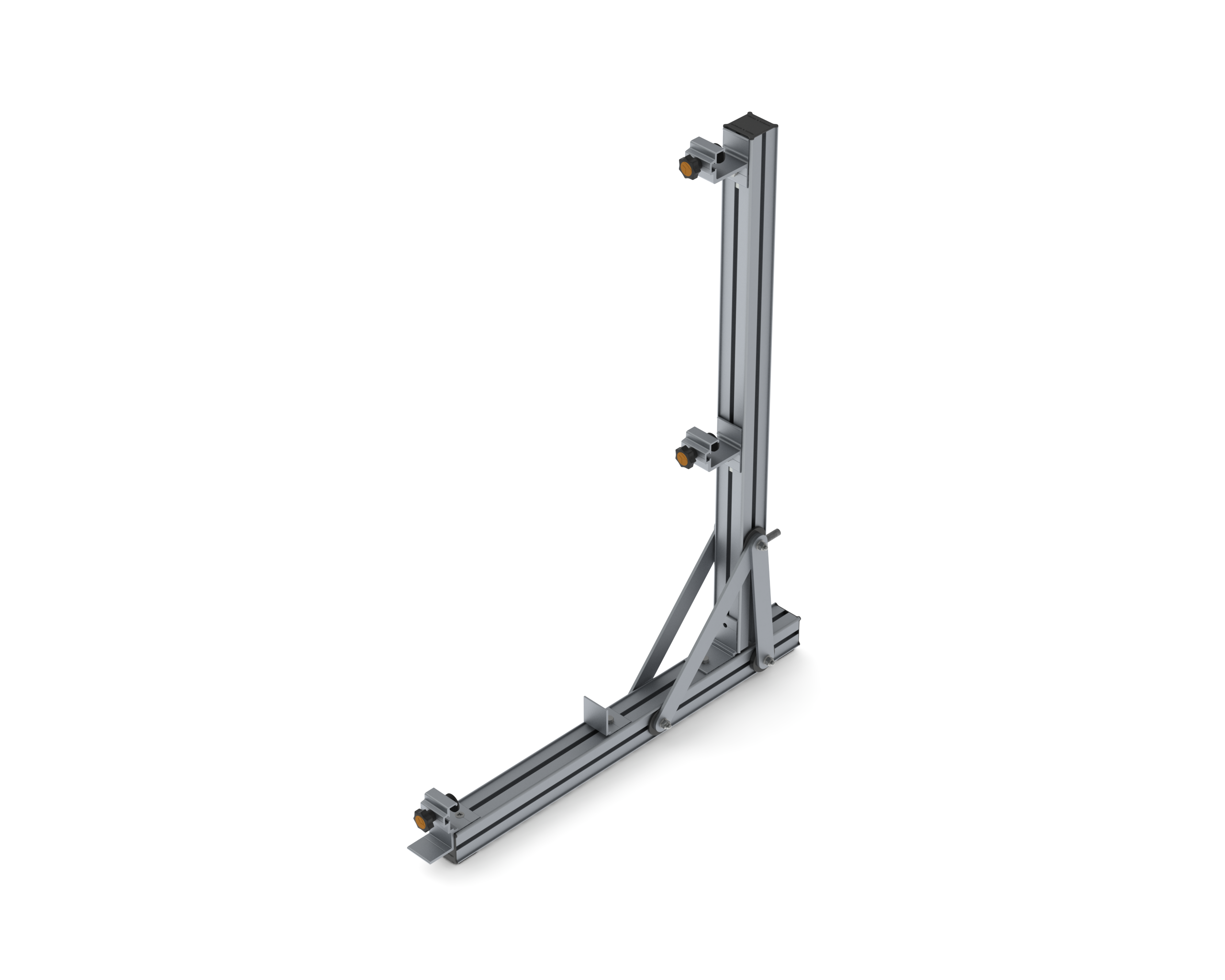

Post Type F
Post Type F has been developed for international installation applications, particularly in situations where space is limited and maximum stability is desired. The design makes it suitable for specific installation work on smaller roofs. The system complies with the EN 13374 standard (Class A) and has been developed with a focus on local building regulations and weather conditions.
Specifications
-
Height
1000 mm
-
Length
800 mm, equipped with double ballast blocks.
-
Toeboard holder
Not possible; installation is only suitable for roof upstands of at least 150 mm.
Post Type F from the Dakreling® system is designed for temporary edge protection on flat roofs with a maximum pitch of 10°. Its modular design, foldable construction and aluminium framework provide both flexibility and durability, making it ideal for a wide range of construction and installation projects. The shortened 800 mm rail makes this post particularly suitable for situations where space is limited.
The system complies with EN 13374, Class A, and is designed to withstand wind speeds of up to Force 5 on the Beaufort scale (29–38 km/h), ensuring safe working conditions in regions with varying weather conditions.
The Dakreling® system can be installed in various configurations:
- Straight-line configurations: For localised work close to the roof edge where the work area can be accessed safely and only a limited section requires protection.
- Corner configurations: For situations where protection around corners is required. Corner configurations can be adjusted to suit any angle.
- U-shaped configurations: For work areas that require protection along multiple sides of the roof.
The addition of ballast blocks provides sufficient stability without damaging the roof covering, making Post Type F a versatile solution that meets building regulations and safety requirements across Europe. To ensure maximum stability, Post Type F is supplied with double ballast blocks as standard. This enables the system to withstand unexpected forces during maintenance, installation and renovation work.
Dakreling Brochure (NL)
336 kB, pdf71000005100 Ballastblok klembeugel (Compleet)
658 kB, pdf71000005150 Ballastblok hoekstuk (Compleet)
397 kB, pdf71000001000 Buisbeugel (Compleet)
354 kB, pdf71000001040 Buisbeugel 100 mm tbv Hoekstuk (Compleet)
315 kB, pdf71000002410 Voetplaat 50 mm (Compleet)
456 kB, pdf71000002500 Aflsuitdop Zwart (incl schroeven)
204 kB, pdfPost-Type-A
Post Type A provides reliable fall protection for work on flat roofs. The system complies with EN 13374 (Class A) and has been developed with local building regulations and weather conditions in mind.
Post-Type-B
Post Type B provides reliable fall protection for work on flat roofs. The system complies with EN 13374 (Class A) and has been developed with local building regulations and weather conditions in mind. The 250 mm extensions position the guardrail further outward, allowing safe working right up to the roof edge, even on roofs with wide parapets.
Post-Type-D
Post Type D provides reliable fall protection for work on flat roofs. The system complies with EN 13374 (Class A) and has been developed with local building regulations and weather conditions in mind. The 250 mm hook extension helps prevent unwanted movement caused by external forces.
